  4. S300-FA

Stretch Wrappers

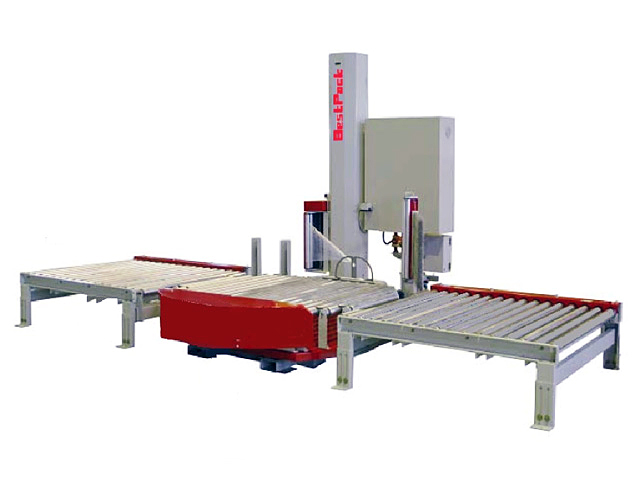

S300-FA

Conveyorized
Automatic
Pre-Stretch Up To 300%
40-50 Loads/Hour

The wide range of CBM System's automatic stretch wrapping systems offer you high performance, durability, economy, and maximum versatility to meet you packaging application needs.

These stretch wrappers offer a convenient and cost-effective way to optimize your stretch wrapping applications.

BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines

Film Delivery Features

  • Standard 20" Film Rolls (30" Option Available)
  • Motorized Pre-stretch up to 300%, Other Ratios Available
  • "Easy Load" Film Carriage with See Thru Lexan Cover
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
  • Corner Compensating Dancing Bar and Analog Control
  • Film Force Release for Easy Pull at Start of Cycle
  • Automatic Film Break or Empty Roll Detection
  • 1/3 HP DC Motor, with Twin Pre-Stretch Rollers
  • Electronic Film Tension Control
  • Automatic Film Clamping
  • Pulsed Controlled Cutter
  • Brushed-On Film Tail Treatment

Machine Specifications

  • Production Speed: 40-50 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 50" L x 50" W x 80" H
  • Minimum Load Size: 36" L x 36" W x 10" H
  • Maximum Load Weight: 4,000 lbs
  • Air Requirements: 3CFM at 80PSI
  • Power Requirements: 230V, 3 Phase, 60Hz, 20 Amps
  • Estimate Machine Weight: 4,800 lbs

Conveyor Features

  • Electronic Soft Start/Stop
  • Turntable Alignment Controlled by Proximity Sensor
  • Variable Speed Controlled
  • 2.5" Diameter Rollers on 3.75" Centers
  • 52" Between Frame Rails
  • Electric Brake System
  • 1/2 HP Roller Motor with Contactor

Control Features

  • PLC Micrologic with 24V Control System
  • Touch Screen Operator Interface
  • Auto-Height Sensing Photoeye
  • Current Overload Protection
  • Separate Top and Bottom Wrap
  • Start/Stop and Reset Button
  • Power On/Off Lockable Switch and Indicator Light
  • Manual Function for Table Forward/Reverse
  • Manual Carriage Up and Down

Factory Options

  • Conveyor Specifications (Customizable)
  • Conveyor with Variable Speed Control
  • Wrap Height Extension (Add 16" Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension
BestPack Stretch Wrappers, Carton Sealers, Carton Erectors, Stretch Hooders

Download PDF Brochure

Find out more about Stretch Wrappers S300-FA products in these colourful brochures complete with detailed specifications.

Download
Please contact us for additional information about Stretch Wrappers, and our team will be happy to assist you.
