Stretch Wrappers

B150

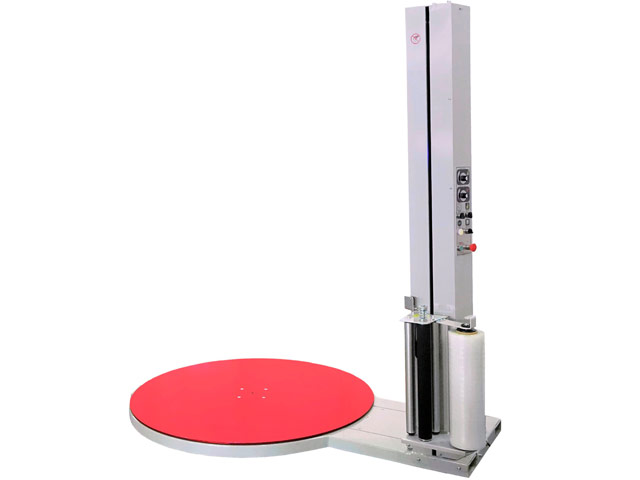

The BestPack B150 is a semi-automatic, low-profile pallet stretch wrapper machine, designed to efficiently fulfill pallet wrapping application needs. The B150 stretch wrapper stretches film up to 150% using clutch tension and dual rollers. It produces secure, consistent wraps, ensuring pallet load integrity and a professional appearance. The B150 is designed to eliminate poorly or inconsistently hand wrapped loads that result from operator fatigue, and it avoids the risk of back injury during hand wrapping.

The B150 stretch wrapper offers adjustable settings to suit your pallets, including variable film carriage speed and turntable speed controls.

The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.

Low Profile
Semi-Automatic
Clutch Tension Setting Up To 150% Film Stretch

Watch Video

BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines

Film Delivery Features

  • Standard 20" Film Rolls (30" Option)
  • Clutch Tension Setting Provide Pre-Stretch up to 150%
  • Dual Aluminum Rollers with Fixed Ratio
  • Easy Film Feed Carriage
  • Automatic Pallet Height Sensor with Adjustable Sensor Position

Machine Specifications

  • Film Delivery System: Clutch Tension Setting Provides up to 150% Film Stretch
  • Production Speed: 25-35 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 53" L x 53" W x 82" H
  • Maximum Load Weight: 4,000 lbs
  • Power: 110V, 60Hz, 20 Amps
  • Estimate Machine Weight: 2,000 lbs.
  • Machine Dimension: 98" L x 59" W x 86" H

Turntable / Frame Features

  • 58" Diameter, 3/8" Laser-Cut Steel Plate
  • 4,000lbs. Load Capacity
  • ANSI# 50 Chain Drive
  • Electronic Soft Start/Stop
  • 1/2 HP, DC Controlled Drive Motor
  • Low Profile
  • No Maintanance, No need to Lube Drive System
  • 8 point Heavy Duty Roller Support System
  • Built-in Forklift Channels
  • Tower with Tilt-Down Hinge for Easy Shipping

Control Features

  • On/Off with Power Indicator
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • Variable Film Carriage Speed and Direction Controls
  • Turntable Jog Switch
  • Omron PLC with Communication Port
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Combination Top and Bottom Wrap Counter (1-3)
  • Manual Film Tension Adjustment with Clutch Setting

Factory Options

  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16" Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension
