Stretch Wrappers

S300-S

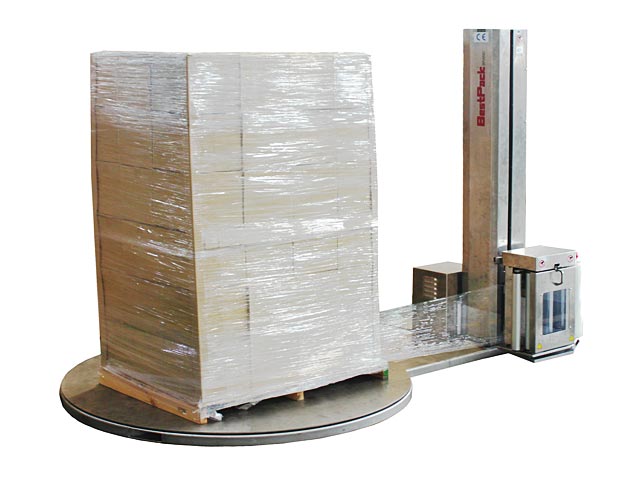

The BestPack S300-S is a semi-automatic, low-profile stretch wrapper designed to cater to light-to-heavy duty pallet wrapping applications. It is our top of the line, high performance S300-S stretch wrapper in stainless steel and is designed for wet environments. Like the S300-S, the S300-S wrapper will pre-stretch film up to 300%.

The S300-S stretch wrapper is designed with the same productivity features as the S300-S to efficiently reduce handling time and securely wrap pallets. These features include corner compensating technology; advanced tension, banding, and pattern controls; an Easy Load film carriage; and Film Force Release for easy film dispensing.

The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.

Low Profile
Semi-Automatic
Pre-Stretch Up To 300%
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines

Film Delivery Features

  • Standard 20" Film Rolls (30" Option Available)
  • Motorized Pre-stretch up to 300%, Other Ratios Available
  • "Easy Load" Film Carriage with See Thru Lexan Cover
  • Automatic Pallet Height Sensor with Adjustable Sensor Position
  • Corner Compensating Dancing Bar and Analog Control
  • Film Force Release for Easy Pull at Start of Cycle
  • Automatic Film Break or Empty Roll Detection

Machine Specifications

  • Film Delivery System: Motorized Pre-Stretch up to 300%
  • Production Speed: 30-50 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 53" L x 53" W x 82" H
  • Maximum Load Weight: 5,000 lbs
  • Power: 110V, 60Hz, 20 Amps
  • Estimate Machine Weight: 2,000 lbs.
  • Machine Dimension: 98" L x 59" W x 86" H

Turntable / Frame Features

  • 58" Diameter, 3/8" Laser-Cut Steel Plate
  • 5,000lbs. Load Capacity
  • ANSI# 60 Chain Drive
  • Electronic Soft Start/Stop
  • 1/2 HP, DC Controlled Drive Motor
  • Low Profile
  • No Maintanance, No need to Lube Drive System
  • 12 point Heavy Duty Roller Support System
  • Built-in Forklift Channels
  • Tower with Tilt-Down Hinge for Easy Shipping

Control Features

  • On/Off with Power Indicator
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • Variable Film Carriage Speed and Direction Controls
  • Manual Controlled Reinforce Wrap
  • Spiral Up/Down Plus Spiral Up Only Wrap Patterns
  • Turntable Jog Switch
  • Omron PLC with Communication Port
  • If Film Breaks, there is an Automatic Resume Feature
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Separate Top and Bottom Wrap Counters (0-9)

Factory Options

  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16" Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension
